MULTI-PRESS


Hydraulic Pump Version

(Foot Attachments Sold Separately)

Acme Screw Version

(Foot Attachments Sold Separately)

Bulb Profile and Section Flange Attachments

Magnet Attachment

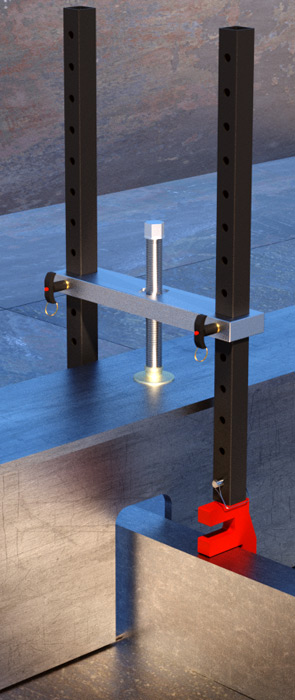

3-ton system used to close gaps where angles and T-section stiffeners transverse. Interchangeable feet allow for connection to flanges or bulb flat profiles or use optional XBAM-L-1000 1,100 lb capacity lift (each) magnets to quickly attach to ferrous metal surfaces.

Simply operate hydraulic pump handle or Acme screw after inserting foot opening onto end of section steel flange or bulb profile or securing magnets to pull steel sheets flush at stiffener transverses.


Hydraulic Pump Version
PART: MPH-3T


Acme Screw Version
PART: MPS-3T

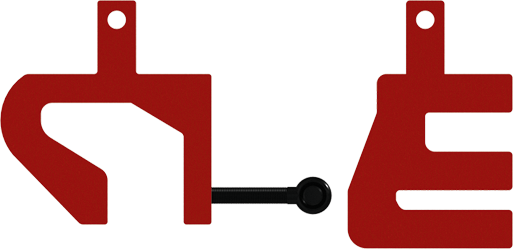

Foot Attachments


Bulb Foot Attachment (two)

PART: MP-BULB


Flange Foot Attachment (two)

PART: MP-FLANGE


​Magnet Foot Attachment - Two XBAM-L-1000​ 1,100 lb breakaway switchable magnets

​PART: XBAM-L-1000MP
