MAG DRILLS


Metal core drilling machines that feature an ultra-powerful switchable permanent magnet with pre-tension, ergonomic operation, use from just 3 mm, PCB with hybrid relays, LED indicator for magnet adhesive force display, temerature sensor, and quick change arbor.

Additional Features:

Motor
Smooth Start
Overload Protection
Motor Emergency Stop

Gearbox
Oil-Bath Gearbox

Slide
Stepless Adjustment
Self-Adjusting Guides

Operation
Soft-Touch Grips
Membrane On/Off Keys
Holder for Allen Key
Cord Length 5 m

Magnet
Sensor/LED
TiN Coating
Performance and Weight Optimization

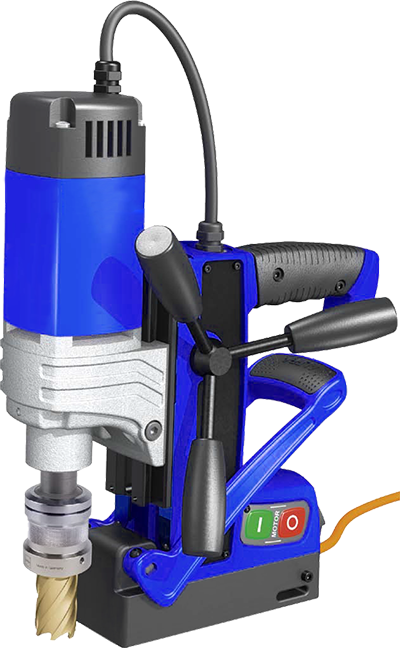

Mag Drill 35 Metal Core Drilling Machine


  • Cutter Dimension - Ø 12.0 - 35.0 mm
  • Cutting Depth - 50.0 mm
  • Twist Drill - Ø 1.0 - 13.0 mm DIN 1897 Short
  • Counterbore - Ø 10.0 - 40.0 mm
  • Tapping - NA
  • Arbor - Quick-Change Tool-Holder
  • Stroke - 105 mm
  • Height Adjustment - 80 mm
  • Gearbox On-Load Speed - 450 RPM
  • Power Consumption - 1,100 W
  • Voltage - 230 V 50/60 Hz / 110 V 50/60 Hz
  • Tool Force (10 mm S235) Drill Point Load - 2,800 N
  • Tool Force (6 mm S235) Drill Point Load - 2,300 N
  • Magnet Footprint - 72 x 190 mm


Includes: Metal core drilling machine with quick-change arbor, carrying case, safety belt, coolant equipment, operating instructions


Weight: 21.8 lbs


PART: MBD-35

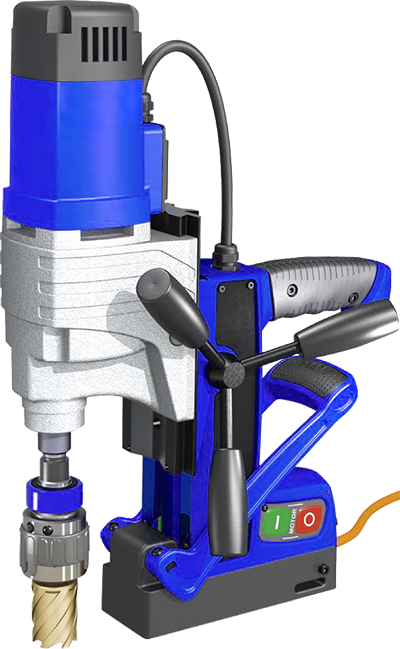

Mag Drill 50 Metal Core Drilling Machine


  • Cutter Dimension - Ø 12.0 - 50.0 mm
  • Cutting Depth - 50.0 mm
  • Twist Drill - Ø 1.0 - 20.0 mm DIN 1897 Short
  • Counterbore - Ø 10.0 - 40.0 mm
  • Tapping - With Tapping Attachment M3 - M20
  • Arbor - MT2
  • Stroke - 80 mm
  • Height Adjustment - 80 mm
  • 2-Speed Gearbox On-Load Speed - Gear 1: 250 RPM / Gear 2: 450 RPM
  • Power Consumption - 1,200 W
  • Voltage - 230 V 50/60 Hz / 110 V 50/60 Hz
  • Tool Force (10 mm S235) Drill Point Load - 2,300 N
  • Tool Force (6 mm S235) Drill Point Load - 2,000 N
  • Magnet Footprint - 72 x 190 mm


Includes: Metal core drilling machine, tool holder MT-2 with internal cooling, carrying case, safety belt, coolant equipment, operating instructions


Weight: 25.4 lbs


PART: MBD-50
