SWITCHABLE MAGNETIC SQUARES


Switchable permanent rare earth Magnetic Squares are extremely powerful and eliminate the need for tedious clamping. The Magnetic Squares offer fast workholding on multiple sides for flat or round steel. Features pre-tapped holes on all sides for mounting and a locking On/Off handle for safety..

​​​​​​​150 lb Breakaway Magnetic Square

Max Hold: 150 lbs on Flat Steel | 75 lbs on Round Steel | Min Diameter: 1-1/2"

Overall Height: 2-3/4" | 1-1/8" H x 1-1/2" W x 1-1/2" L

Tap: #8-20 | Tap Depth: .330

PART: SQ150IM

Weight: 0.80 lbs​​​​​​​

​​​​​​​450 lb Breakaway Magnetic Square

Max Hold: 450 lbs on Flat Steel | 225 lbs on Round Steel | Min Diameter: 2"

Overall Height: 4-5/8" | 2-3/4" H x 2-1/2" W x 3" L

Tap: 1/4-20 | Tap Depth: .500

PART: SQ450IM

Weight: 4.30 lbs

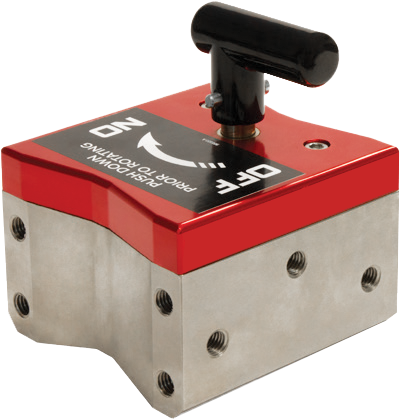

​​​​​​​1,000 lb Breakaway Magnetic Square

Max Hold: 1,000 lbs on Flat Steel | 500 lbs on Round Steel | Min Diameter: 4"

Overall Height: 4-3/4" | 3" H x 4" W x 4-1/4" L

Tap: 3/8-16 | Tap Depth: .625

PART: SQ1000IM

Weight: 10.45 lbs
