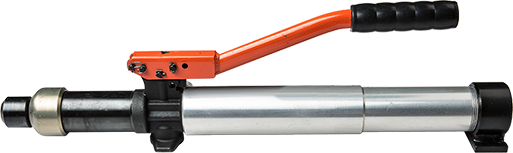

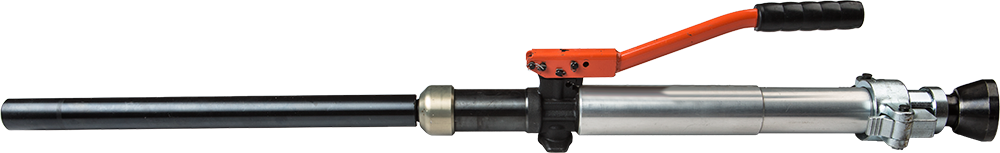

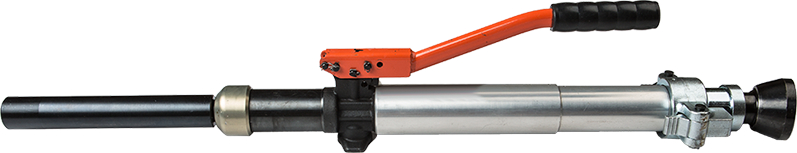

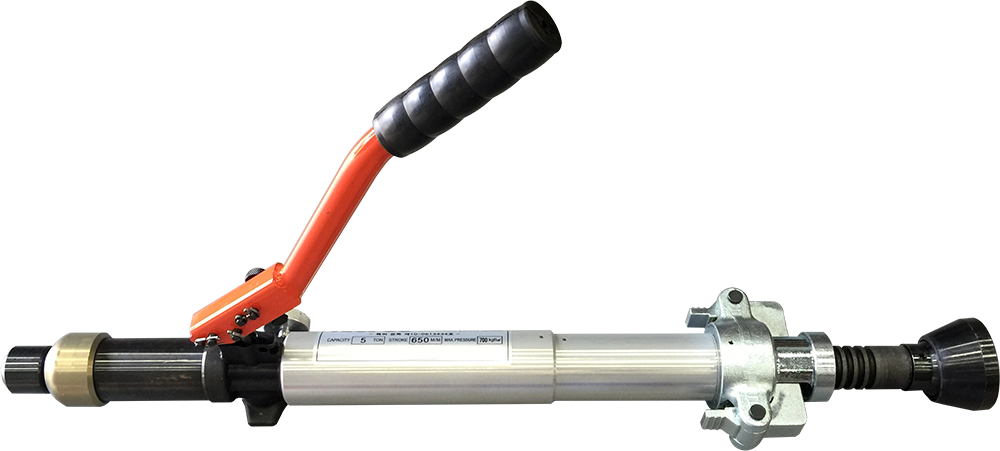

Offering 5 or 10 tons (depending on model) of self-contained hydraulic pushing power, the Hydra-Pack lets you adjust misaligned stiffeners, push items into place, and perform many other pushing tasks. The easy pull-out saddle end allows quick adjustment to the needed length and minimizes pumping. With the shortening and extension kits shown below, the 5-ton model goes from 21.75” (550mm) to 51.7” (1,313mm). The 10-ton model requires no shortening kit and, with extensions, goes from 24.75” (628.65mm) to 51.5” (1,308mm).
- 5 or 10-Ton Hydraulic Cylinder (load return "C" and spring return)
- Hydraulics extend up to 3.74" (95mm)
- Max Working Pressure = 700 kg/cm2
5-Ton Model
PART: HP5T
Overall Collapsed Length = 25.6" (650mm)
Overall Extended Length = 34.45" (875mm)
Piston Stroke = 3.74" (95mm)
Pull-Out Saddle Stroke = 5" (128mm)
Weight: 14.8 lbs
Click for HP5T Parts Breakdown
10-Ton Model
PART: HP10T
Overall Collapsed Length = 26.77" (680mm)
Overall Extended Length = 34.25" (870mm)
Piston Stroke = 3.15" (80mm)
Pull-Out Saddle Stroke = 4.33" (110mm)
Weight: 24.25 lbs
Click for HP10T Parts Breakdown
