MAGLOGIX SMALL MULTI-PURPOSE MAGNETS


XBAM-150

XBAM-500

The ultimate magnets with hundreds of uses.



  • Up to 150 lbs. (XBAM-150) or 500 lbs. (XBAM-500) of holding force even on .125” plate steel (breakaway)
  • Incredibly lightweight and easy to handle
  • Easy actuation for rapid on/off control. Handle locks on for safety—push red button down to release handle
  • Tapped holes on three sides and the top for attachment of accessories (XBAM-150 8-32 holes / XBAM-500 1/4-20 holes)
  • Incredible shear force holding power for greater grip in vertical applications
  • Ideal for plate levelling, platform building, fixturing, and work holding of all types
  • Ultra-compact magnetic field allows for welding as close as .5” (max. temperature 176° F)

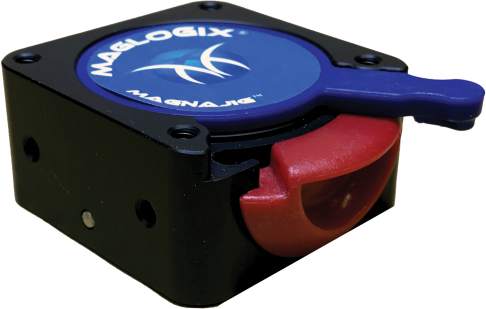

PART: XBAM-150
2.0” long X 2.77" W (incl. handle) X 1.0" H
Weight: .61 lbs

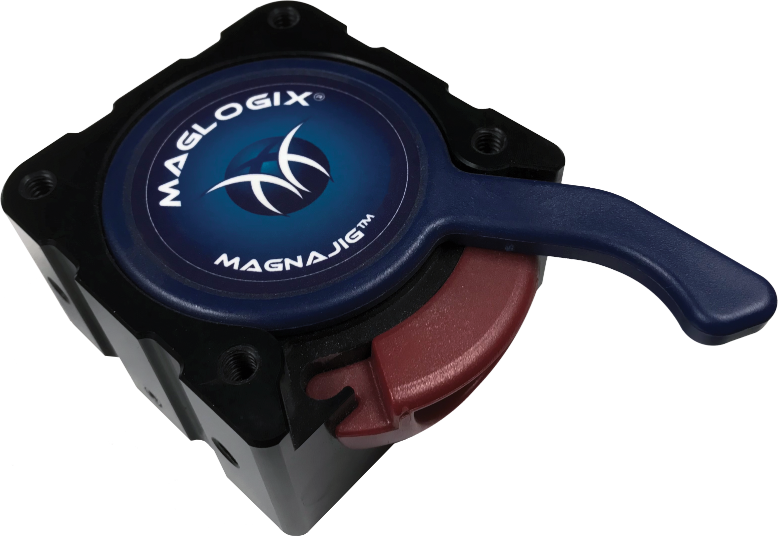

PART: XBAM-500
3.12" long X 5.1" W (incl. handle) X 1.65" H
Weight: 2.25 lbs
